Voipfone Softphone Configuration Guide
![Available on the Google Play Store Available on the Google Play Store](/media/images/icons/app-store.png)
Our Softphone iPhone App is simple to set up and use - just follow our how to configuration guide below and you will be ready to go in a couple of minutes.
When you first launch the app, you will be asked to login using either your QR code or your extension information (manual setup, applicable to master accounts).
QR code
To obtain your extension's QR code, log into your control panel and head to Services → Mobile Services → Manage Softphone.
![Manage Softphone settings on the Voipfone control panel Manage Softphone settings on the Voipfone control panel](/media/images/screenshots/softphone-android-setup-01-manage-softphone-navhide.png)
If you are not logged in as an extension you will need to click Switch To Extension.
![Switch To Extension location Switch To Extension location](/media/images/screenshots/softphone-android-setup-02-switch-extension-navhide.png)
Select an extension you want to use with your Voipfone softphone app and hit Switch to Selected Account
![Switching to an extension Switching to an extension](/media/images/screenshots/softphone-android-setup-03-switch-account-navhide.png)
You can now use the app to scan the QR code for instant setup.
![Manage Softphone QR Code Manage Softphone QR Code](/media/images/screenshots/softphone-android-setup-04-qr-code-navhide.png)
Manual setup
Firstly, you will need your account number, extension number and your extension password. These can be found at your PBX Extensions page in the control panel (if you're not the account holder you'll need to ask them for these details).
Click the eye icon to view your extension's password:
![Account number, extension number and extension password location Account number, extension number and extension password location](/media/images/screenshots/softphone-android-setup-05-extension-information-navhide.png)
If you are chosing to log in with your extension information, in the Account Number field please format your input as follows:
[account_number]
*[extension number]
So if your account number is 30999999 and your extension number is 200 you would enter: 30999999*200

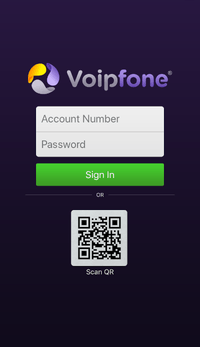

In the Password field, enter the password for your extension obtained in the previous step.
![Voipfone Softphone app login screen Voipfone Softphone app login screen](/media/images/screenshots/softphone-iphone-ios-01-app-login.png)
Please note: If you intend to use your master account with the app, you can log in with just your 8 digit account number and the phone password obtained from Services → Master Account → Phone Settings
![Master account phone settings password location Master account phone settings password location](/media/images/screenshots/softphone-android-setup-07-master-account-phone-password-navhide.png)
Once signed in, the app will ask you to read and accept the terms and conditions.
![Voipfone Terms & Conditions Voipfone Terms & Conditions](/media/images/screenshots/softphone-iphone-ios-02-terms-conditions.png)
You will then be prompted to allow the app the following permissions:

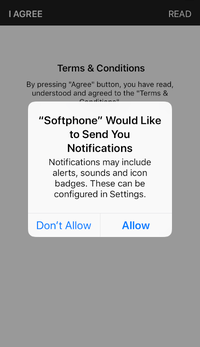

To notify you of incoming calls:
![Softphone app microphone permission request Softphone app microphone permission request](/media/images/screenshots/softphone-iphone-ios-03-permission-notifications.png)

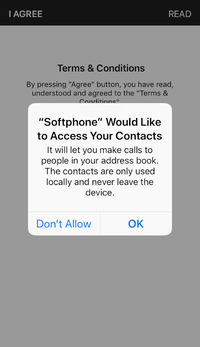

To display your contacts:
![Softphone app phone permission request Softphone app phone permission request](/media/images/screenshots/softphone-iphone-ios-04-permission-contacts.png)

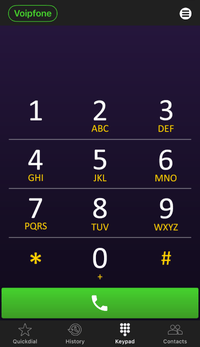

The inital setup is now complete. When you're ready to make a call, you can tap on the keypad and input a number or select a contact from your contacts.
![Voipfone app dialing screen Voipfone app dialing screen](/media/images/screenshots/softphone-iphone-ios-05-app-dial-screen.png)

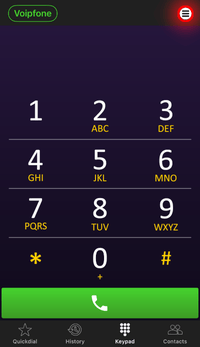

You will be able to access and customise other features such as ringtones by tapping on the top right three lines.
![Voipfone app settings button location Voipfone app settings button location](/media/images/screenshots/softphone-iphone-ios-06-app-settings-button.png)
![Voipfone app settings screen Voipfone app settings screen](/media/images/screenshots/softphone-iphone-ios-07-app-settings-screen.png)
When making calls from the Softphone app, the outgoing phone number will be the Caller-ID (CLI) set for your extension. The account holder can set an extension's CLI here or from Services → Virtual PBX → Caller ID within the Master Account.
![Caller ID settings on the Voipfone control panel Caller ID settings on the Voipfone control panel](/media/images/screenshots/softphone-android-setup-16-caller-id-navhide.png)
If you're still stuck and unsure how to use the Voipfone Softphone App, please call Customer Services on 0345 868 5555 and one of our representatives will be happy to show you how to set it up.
